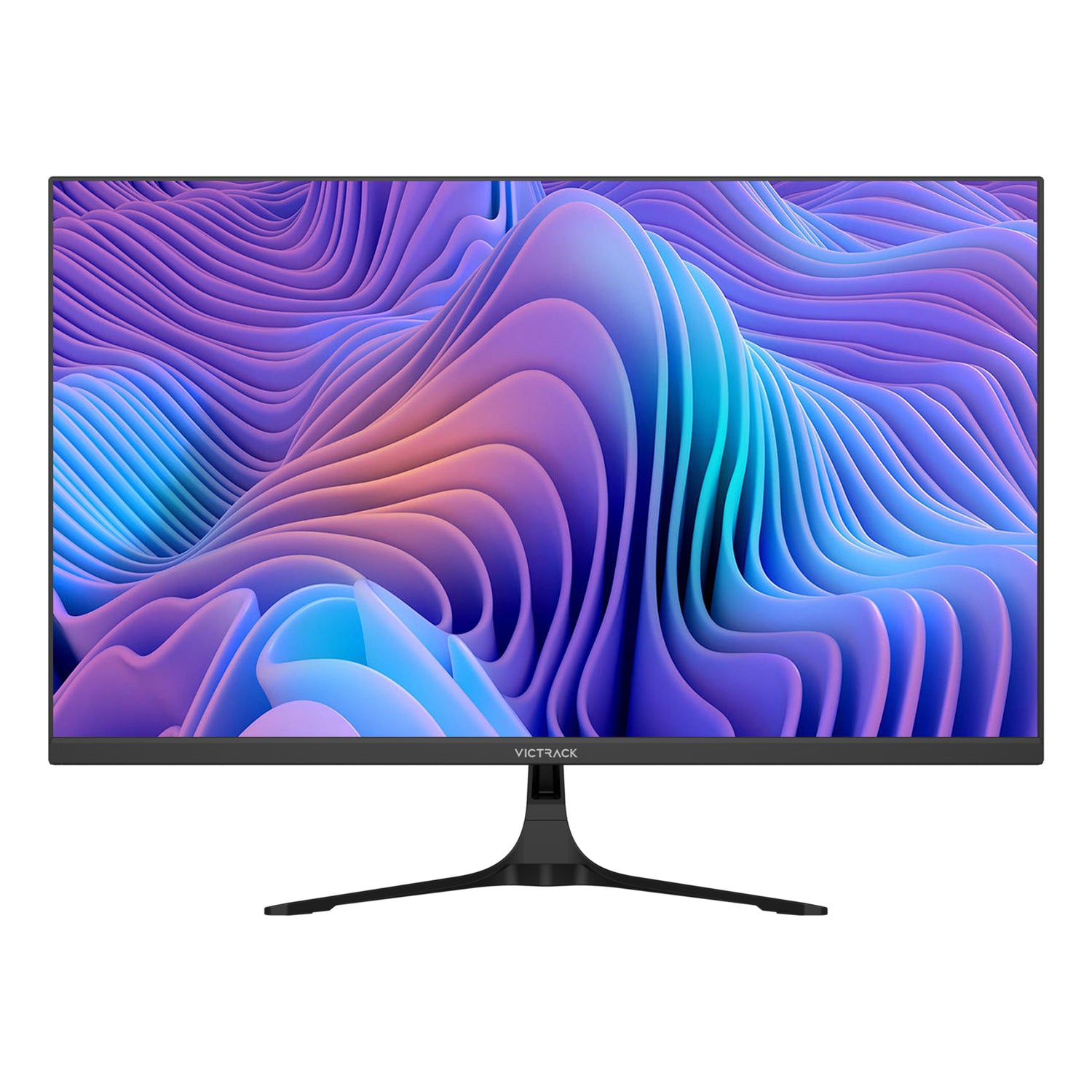

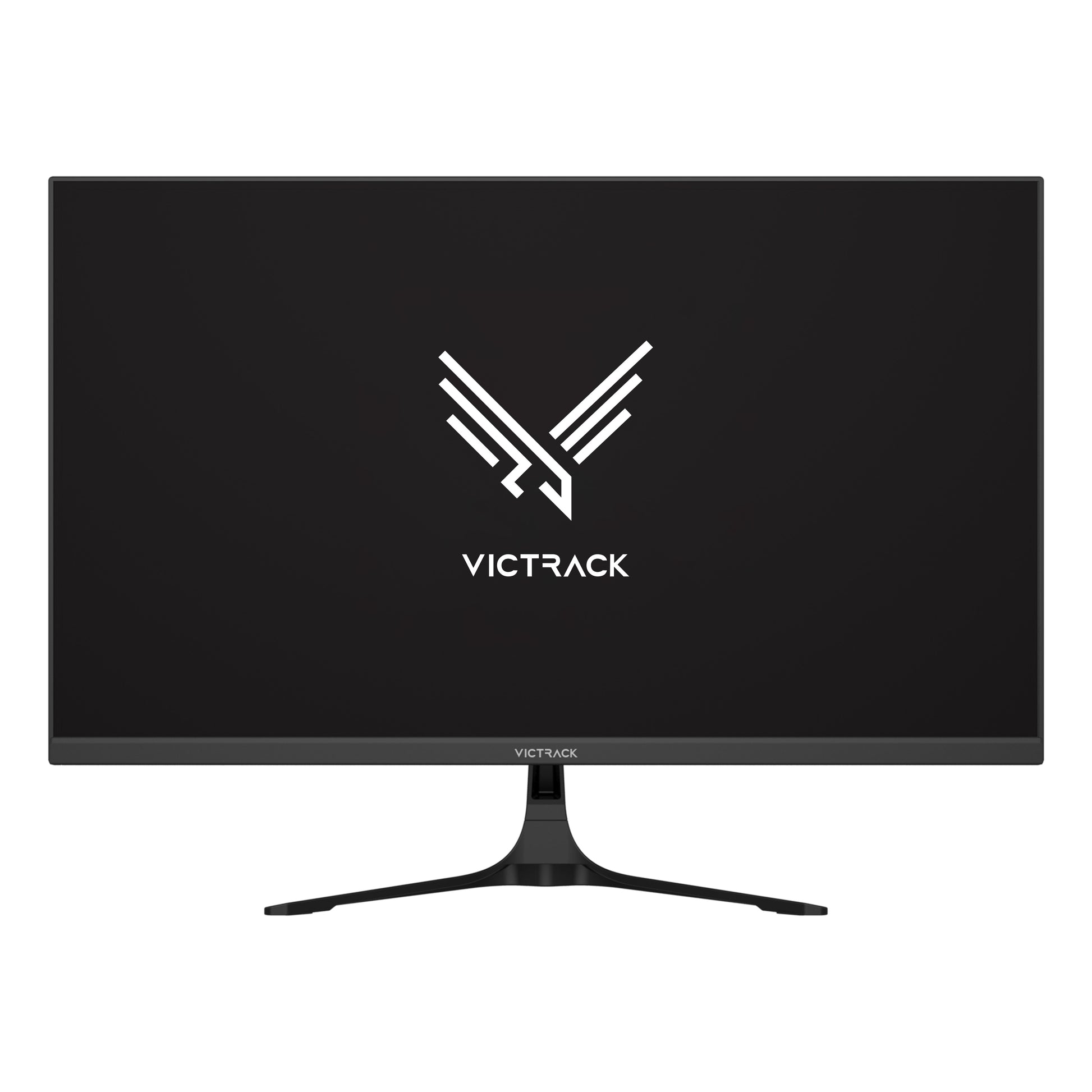

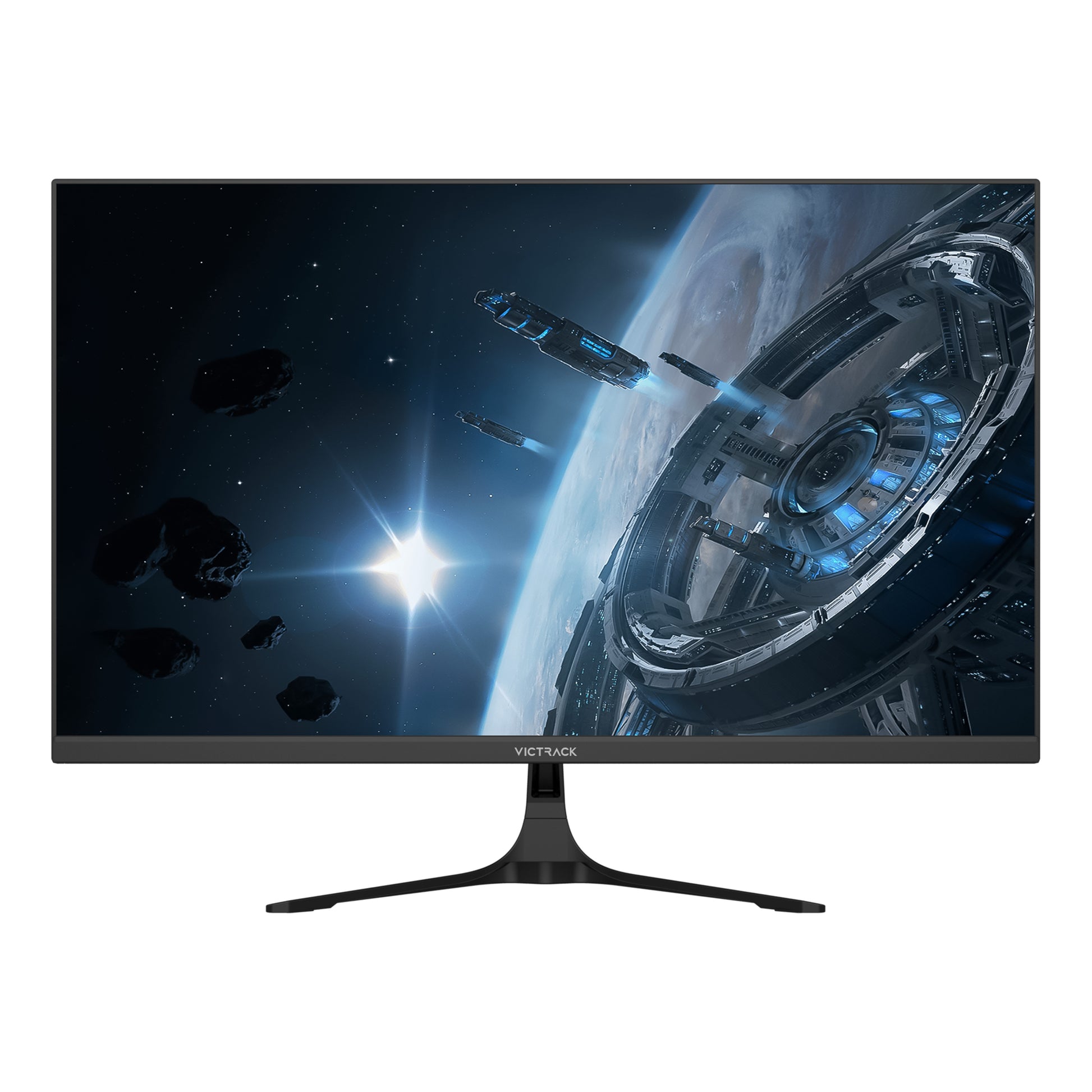

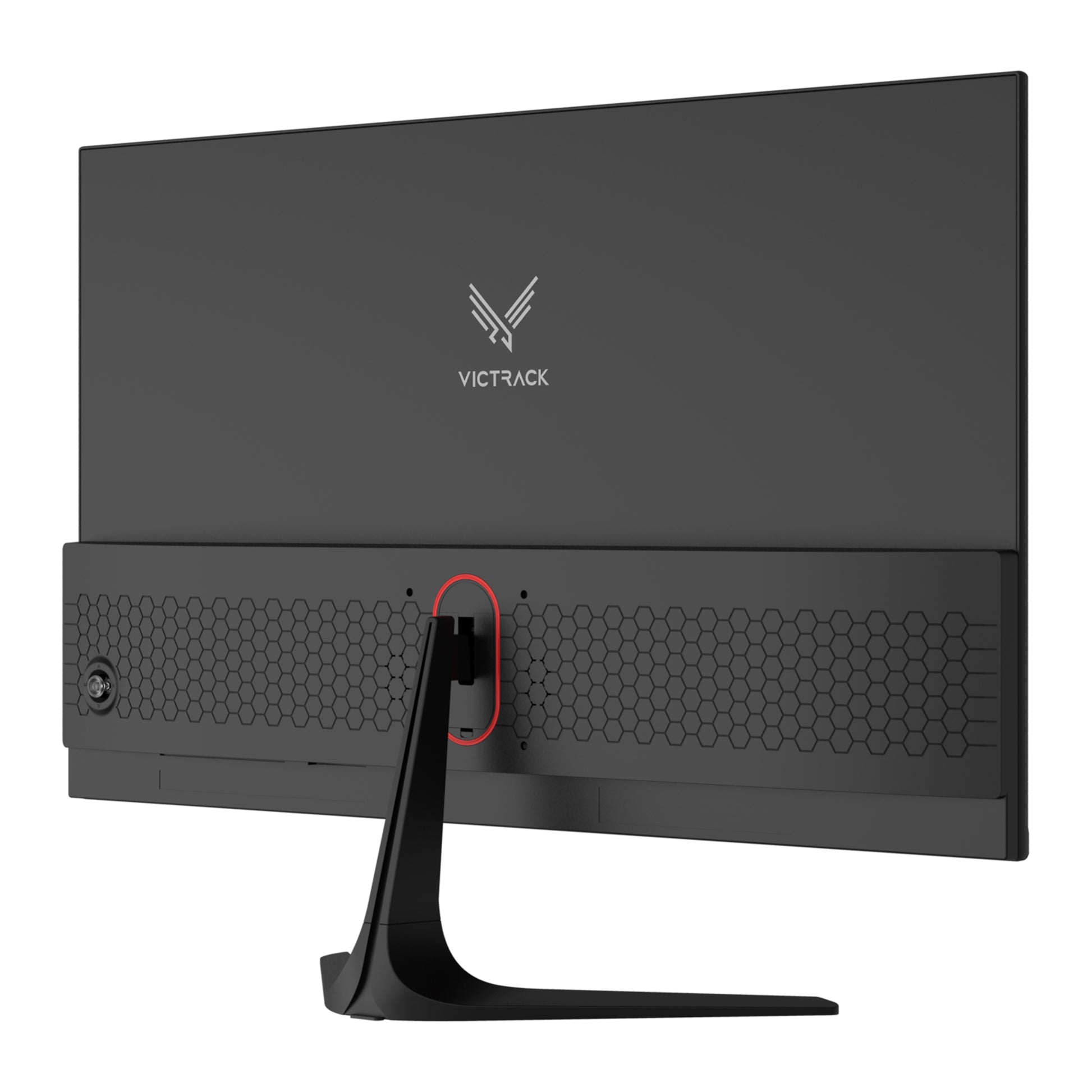

Victrack 23.8-inch/27-inch FHD 1080P Gaming Monitor, FastIPS 280Hz 1ms DisplayPort HDMI2.0/DP1.4 99%sRGB AMD FreeSync, Frameless Machine, Black

Victrack 23.8-inch/27-inch FHD 1080P Gaming Monitor, FastIPS 280Hz 1ms DisplayPort HDMI2.0/DP1.4 99%sRGB AMD FreeSync, Frameless Machine, Black

Size
Panel Resolution
Refresh Rate

Model: 24FM16501/27FM16501/27FM16501Q/27FM24001

On Sale

View full details

You may also like

1 4

01

Extraordinary picture quality

  1. 1080P FHD/2K QHD, VA screen
  2. 16.7 million pixels, 8-bit color depth
  3. 99% sRGB/72% NTSC
  4. View angel: 178°/178°
  5. HDR

02

Professional Gaming Performance

  1. Refresh Rate: 144Hz~280Hz
  2. Response Time: 1ms(MPRT)
  3. Contrast Ratio: 1000(TYP)
  4. Module Maximum Brightness: 300cd/m2(Max)

03

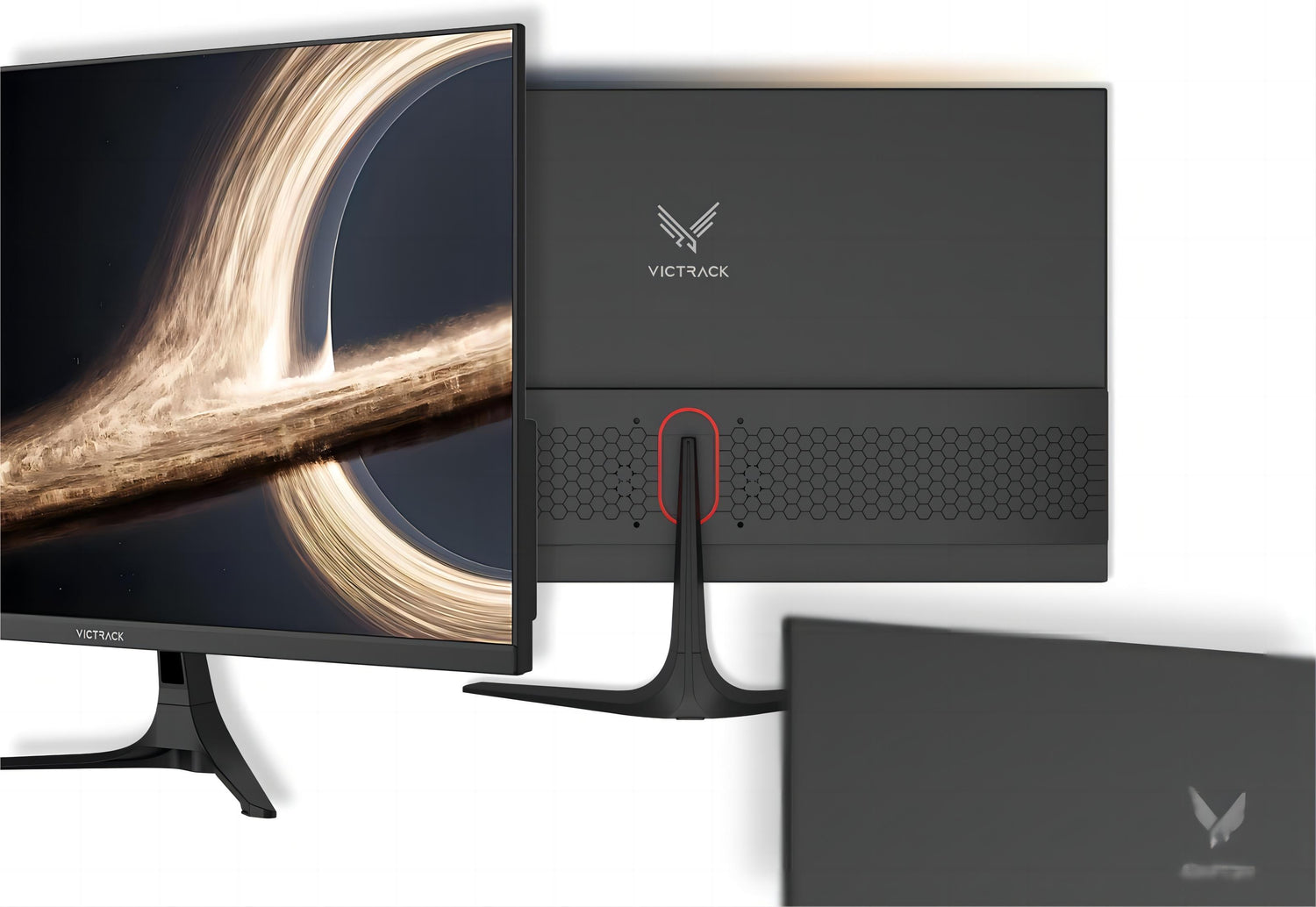

Design for Gaming

Simple and Elegant design

Product Information

1. Screen

Spec/Model 24FM16501 27FM16501 27FM16501Q  27FM24001
Flat/Curve Flat Flat Flat Flat
Aspect Ratio 16:9 16:9 16:9 16:9
Screen Size 23.8inch 27inch 27inch 27inch
Display Area (H*V) 527.04(H) × 296.46(V) 596.74(H) × 335.66(V) 596.74(H) × 335.66(V) 597.6(H) × 336.15(V)
Panel Resolution 1920*1080 1920*1080 2560*1440 1920*1080
Refresh Rate(OC) 165Hz 144Hz 165Hz 240Hz
Refresh Rate(Overfrequency) - 165Hz 170Hz 280Hz
Panel FastIPS FastIPS FastIPS FastIPS
Backlight Type E-LED E-LED E-LED E-LED
Module Maximum Brightness 300cd/m2(Default)±20 300cd/m2(Default)±20 300cd/m2(Default)±20 300cd/m2(Default)±20
Factory Control Value According to software settings(Min180) According to software settings(Min180) According to software settings(Min180) According to software settings(Min180)
Default Color Temperature 6500K 6500K 6500K 6500K
Contrast Ratio 1000(TYP) 1000(TYP) 1000(TYP) 1000(TYP)
Pixels 16.7M 16.7M(8bits) 16.7M(8bits) 16.7M(8bits)
sRGB 99% 99% 99% 99%
NTSC - 72% 72% 72%
HDR Yes Yes Yes Yes
View Angle (H/V) CR≥10 178°/178° 178°/178° 178°/178° 178°/178°
Response Time 7.5ms(TYP) 5ms(TYP) 5ms(TYP) 5ms(TYP)
Response Time 1ms(MPRT) 1ms(MPRT) 1ms(OD) 1ms(OD)

2. Soft

Spec/Model 24FM16501 27FM16501 27FM16501Q 27FM24001
Control Mode Rocker Button Rocker Button Rocker Button  Rocker Button
OSD Manue Style Common Blue/White OSD Common Grey/Blue OSD Common Black/Red OSD Common Black/Red OSD
Language Menu 10 Countries Language (Defaut: English) 10 Countries Language (Defaut: English) 10 Countries Language (Defaut: English) 10 Countries Language (Defaut: English)
DCR ON/OFF Yes Yes Yes Yes
OD (Overdrive) ON/OFF No Yes Yes Yes
MPRT Yes Yes Yes Yes
Color Temp(Cool/Normal/Warm/User).  Yes Yes Yes Yes
Low Blue Mode(Strong/Medium/Weak/Off) Yes Yes Yes Yes
FreeSync ON/OFF Yes Yes Yes Yes
Adaptive-Sync ON/OFF Yes Yes Yes Yes
Backlight Ajustment w/o Flicker No Yes Yes Yes
6 Contextual Models Yes Yes Yes Yes
Multiple-Language Menu Yes Yes Yes Yes
FPS/RTS Game Mode No No Yes Yes
Game Plus Yes Yes Yes Yes

3. Eletronics

Spec/Model 24FM16501 27FM16501 27FM16501Q 27FM24001
Chipset RTK2556 RTK2556 MST9800 MST9800
Port 1 HDMI2.0 HDMI2.0 HDMI2.0 HDMI2.0
Port 2 DP1.2 DP1.2 HDMI2.0 HDMI2.0
Port 3 Audio Out Audio Out DP1.4 DP1.4
Port 4 - - DP1.4 DP1.4
Port 5 - - Audio Out Audio Out
Port 6 - - - -
Power Input DC 100~240V DC 100~240V DC 100~240V DC 100~240V
Power Supply DC 12V-2.5A DC 12V-4A DC 12V-4A DC 12V-4A
AC Input Power 30W Max 48W Max 48W Max 48W Max
Stand-by Power Consumption (Max) ≤0.5w ≤0.5w ≤0.5w ≤0.5w
Indicator Light Mode Power on: Blue (LED) Power on: Blue (LED) Power on: Blue (LED) Power on: Blue (LED)
